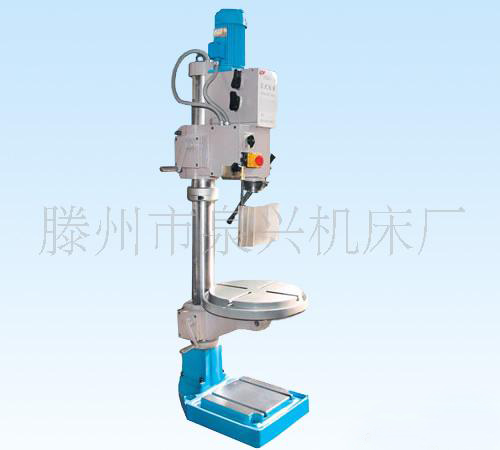

【机床特性】
1、主轴转速高(100-2900转),适合精加工
2、工作台可围绕立柱360度旋转,方便灵活
型号(Model)规格Specifications |
Z5025-1A |
大钻孔直径Drilling capacity(mm) |
25 |
主轴大行程Max.spindle travel(mm) |
140 |
主轴锥孔Taper of spindle |
MT3 |
主轴变速范围(8级)Spindle speeds range(8 steps) |
100-2900 |
主轴中心至立柱表面距离Distance spindle axis to column (mm) |
225 |
主轴端至工作台面大距离Max. Distance spindle nose to worktable(mm) |
620 |
工作台托架大行程Max travel of the supporting block of working table (mm) |
390 |
主轴端面至底座大距离Max. Distance from spindle nose to working surface of base plate(mm) |
1075 |
工作台尺寸Dimension of worktable table(mm) |
Φ390 |
底座工作面尺寸Dimension of effective working area of base plate(mm) |
305×297 |
电动机功率Motor power(kw) |
0.75/0.55 |
钻床外型尺寸Overall dimension (mm) |
640×470×1670 |
净重/毛重N.G./G.W.(kg) |
235/290 |
